Wooden Gates and Accessories

This website does not take payment, please place your order as normal and we will email you a quote from our Xero system. You will receive a confirmation of your quote request followed by the quote itself which comes from a separate email address, during working hours this should take less than one working day. Please note prices on this website do not include VAT.

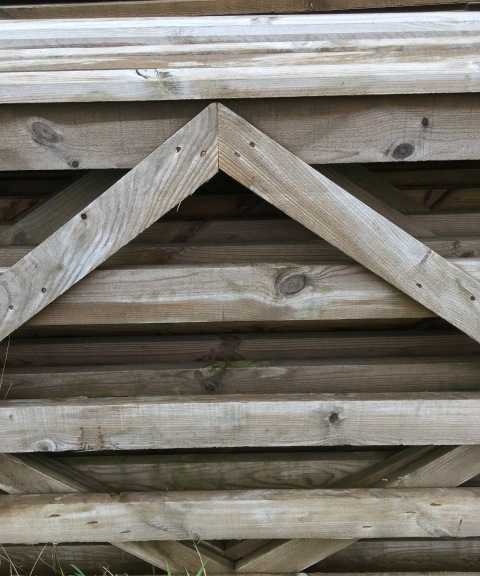

Heavy duty 5-bar wooden gate 120cm or 47ins high

click photo to enlarge



size   price quantity
2.38m (93.75ins) heavy duty wooden gate £120.50
2.685 m (105.75ins) heavy duty wooden gate £122.80
2.99 m (117.75ins) heavy duty wooden gate £134.52
3.59 m (141.25ins) heavy duty wooden gate £154.72
  • Made from from pressure treated softwood. The gates have mortised ends, a shaped top rail and heavy end pieces. The end pieces are approx 120cm high. The rails span a height of 97cm from top of top rail to bottom of bottom rail. The base of the re-inforced hinge plates are respectively 8.5cm and 99cm above the base of the end post. The Gates come without fittings, we recommend Double gate band kits, see below, with 24 inch for 8ft and above gate and 12 or 18inch for 5ft, 4ft and 3ft gate. Please note the gates will warp if hung or stored incorrectly. They are suitable for painting or staining but need to be perfectly dry first. We recommend professional fitting. Recommended post diameter for hanging gates of 2.38m and above is 175mm, recommended post diameter for hanging smaller gates is 150mm



Double gate band kit, fits 1 gate.

click photo to enlarge


size   price quantity
300mm (12inch) Double gate band kit £32.50
450mm (18 ins) Double gate band kit £32.50
600mm (24inch) Double gate band kit £32.50
  • 1 Pack hangs 1 gate. Double sided gate bands are advised for hanging wooden Border gates. These come in one width 75mm



4-way top square-section gate posts

click photo to enlarge


size   price quantity
2.4m x 150x150mm (8ft x 6 x 6ins) 4-way square-section gate posts £32.50
2.4m x 175x175mm (8ft x 7 x 7ins) 4-way square-section gate posts £47.62
  • Treated offsaw softwood posts with 4 way tops at one end - flattened pyramid cut. Please note that should any cuts be made in these posts the treatment manufacturers recommend that the cuts must be retreated with a suitable timber treatment.



Top Loop Gate no fittings

click photo to enlarge


size   price quantity
1.19m (46.75ins) Top Loop Gate £156.90
3.595m (141.5ins) Top Loop Gate £225.00
  • Gates manufactured from offsaw pressure treated softwood - sizes shown are in stock. 3.595m gate has post 1.64m high. The rails span 0.97m from top of top rail to bottom of bottom rail. The bases of the bracing plates are respectively 8.5cm and 95.5cm from the base of the end post. We recommend that the gates are hung by a professional. A 24



Wooden Deer Gates 1.8m or 70.5ins high

click photo to enlarge


size   price quantity
3.59m by 1.8m high (141.5ins wide x 6ft high) Wooden Deer Gates £256.00
  • The wooden deer gates (1.8m or 6ft High) have mortised ends, a shaped top rail and heavy end pieces. Made from pressure treated softwood offsaw rails. The end post is 1.8m high. The rails span a width of 1.57m from base of base rail to top of top rail. The bases of the bracing plates are respectively 8.5cm and 165.5cm above the base of the end post. We recommend the 0.88m wide gates are hung using 12



Hinges & leaves for wooden gates - double gate band kit - galvanised

click photo to enlarge


size   price quantity
300mm (12inch) Hinges & leaves for wooden gates - double gate band kit - galvanised £32.50
450mm (18ins) Hinges & leaves for wooden gates - double gate band kit - galvanised £32.50
600 mm (24 ins) Hinges & leaves for wooden gates - double gate band kit - galvanised £32.50
  • This is the pack best used withBorder gates, a good quality set of fittings which stand up well to the West Coast weather. The bands only come in one width (3



Self closing 2 way 180 Hinge set

click photo to enlarge

size   price quantity


Safety hook

click photo to enlarge

size   price quantity
Safety hook £8.37


Hinges & leaves for wooden gates - pre-packed galvanised gate hinges with screws

click photo to enlarge


size   price quantity
350 mm (14 ins) Hinges & leaves for wooden gates - pre-packed galvanised gate hinges with screws £16.89
400 mm (18 ins) Hinges & leaves for wooden gates - pre-packed galvanised gate hinges with screws £23.21
  • Pre-pack hinges take some of the difficulty out of building your own gates, the pack contains everything necessary to hang a gate and it is all guaranteed to fit together without worrying about pin sizes and angles, perfect for garden gates of all sizes up to 3.6m.



Hinges & leaves for wooden gates - galvanised single leaf estate band pair

click photo to enlarge


size   price quantity
400 mm (18 ins) Hinges & leaves for wooden gates - galvanised single leaf estate band pair £20.60
600 mm (24 ins) Hinges & leaves for wooden gates - galvanised single leaf estate band pair £27.71
  • Estate bands gate bands are large, single sided gate bands which will hang on a 19mm hook of any type, these are heavy duty and sturdy enough to take very solid gates. You will require coach bolts or similar to attach these.



T Hinges pair, pre packed with screws

click photo to enlarge

size   price quantity
36cm medium duty (14inch) T Hinges pair, pre packed with screws £6.48
46cm heavy duty (18inch) T Hinges pair, pre packed with screws £16.00
46cm medium duty (18inch) T Hinges pair, pre packed with screws £9.53


Wooden gate closures - galvanised striker

click photo to enlarge

size   price quantity
Cranked Wooden gate closures - galvanised striker £6.80
Straight leg Wooden gate closures - galvanised striker £6.10
  • used on wooden gates screwed through the end piece of the gate.



Wooden gate closures - small auto gate latch with striker

click photo to enlarge


size   price quantity
small Wooden gate closures - small auto gate latch with striker £5.80
  • Ideal for smaller passenger gates and garden gates.



Large auto catch

click photo to enlarge

size   price quantity
Large auto catch £8.52


Wooden gate closures - galvanised brenton padbolt and plate

click photo to enlarge

size   price quantity
200 mm (8 ins) Wooden gate closures - galvanised brenton padbolt and plate £7.20
  • Substantial enough to cope with high winds this gate bolt can also be padlocked for security.



Wooden gate closure - padbolt and elongated closure

click photo to enlarge

size   price quantity
150mm (6 ins) Wooden gate closure - padbolt and elongated closure £6.50
  • 6 ins



Wooden gate closures - New Zealand gate catch

click photo to enlarge

size   price quantity
1000mm (39.5ins) Wooden gate closures - New Zealand gate catch £11.05
  • even if your gate hinges sag this will still work, it is completely secure and can be padlocked, sometimes the simplest ideas are the best.



Spring fastener latch set

click photo to enlarge


size   price quantity
Spring fastener latch set £24.50
black japanned not galv Spring fastener latch set £15.62
  • sometimes called an equine catch because it is ideal for riders on horse back and looks very elegant, this is also surprisingly easy to operate.



Wooden double gate closures - galvanised loop over latch

click photo to enlarge


size   price quantity
350 mm (14 ins) Wooden double gate closures - galvanised loop over latch £14.90
w' handle (14inch ) Wooden double gate closures - galvanised loop over latch £16.80
  • The width of this loop is set for wooden gates and it is the ideal method of closing a pair of wooden gates together. Pairs of gates ideally required additional stabilising, see drop bolts.



Wooden double gate closures - galvanised drop bolt

click photo to enlarge


size   price quantity
400 mm (18 ins) Wooden double gate closures - galvanised drop bolt £19.10
  • The drop bolt stabilises one or both of a pair of wooden gates and can also be used to fasten a gate back but will not last forever if used as the sole method of closure in a windy situation.



Gate return spring, pre pack

click photo to enlarge

size   price quantity
Gate return spring, pre pack £12.75
  • this is used for wooden gates and is ideal in situations where there is a large amount of traffic through the gate or in handling facilties. Will require maintenance



Suffolk heavy latch

click photo to enlarge


size   price quantity
Gothic Suffolk heavy latch £18.62


Ring latch set

click photo to enlarge

size   price quantity


Rails are pressure treated off saw (slightly rough finish) unless described as UC3 KD C16 - these are treated for exterior use and stress graded for use in building projects.

Opening times

Our office hours are 9am to 5pm Monday to Friday

Email: sales.aftltd@gmail.com

Argyll Fencing and Timber Ltd - please note this business is online only, no phone lines, thank you.

Delivery to Argyll

Your quote will include a delivery charge unless we know that you will be collecting.

If you prefer to collect please let us know either in the "delivery instructions" box at the website checkout or by email later. Email sales.aftltd@gmail.com. If you wish to collect then this can be arranged at pre-arranged times and we will respond with a note of suitable time slots or you can request a specific slot in advance.

Deliveries are kerbside and one-man unless otherwise specified. Please let us know of any access restrictions to your delivery site. We always appreciate detailed instructions on how to find you either in the delivery instructions box at checkout or by email, thank you.

Please note that all collections must be pre-paid and arranged in advance.

Please see our directions page for information on how to get here.

approximate equivalents

Timber is cut in metric sizes. These approximate equivalents are for your guidance only.

22mm 32mm 38mm 47mm 75mm 85mm 100mm 125mm 150mm 200mm 300mm
1" 1.25" 1.5" 2" 3" 3.5" 4" 5" 6" 8" 12"
1.5m 1.65m 1.8m 2.1m 2.4m 2.7m 3.0m 3.3m 3.6m 3.9m 4.2m 4.5m 4.8m
5' 5'6" 6' 7' 8' 9' 10' 11' 12' 13' 14' 15' 16'
